Small Batch Casting China: Data-Driven Guide to Low MOQ Sourcing (2026)
It started with a nightmare.
A Midwest equipment startup needed 200 ductile iron brackets. Every US foundry quoted MOQs of 1,000+ pieces and lead times pushing 14 weeks. They turned to China hoping for flexibility—and ended up with 2,000 pieces they didn't need, off-spec material, and a burned relationship. Sound familiar?
Small batch casting in China doesn't have to be a gamble. But it requires a data-driven approach—not blind faith. This guide breaks down real costs, MOQ benchmarks, qualification frameworks, and red flags—all from the buyer's seat. No fluff. Just the numbers that matter.

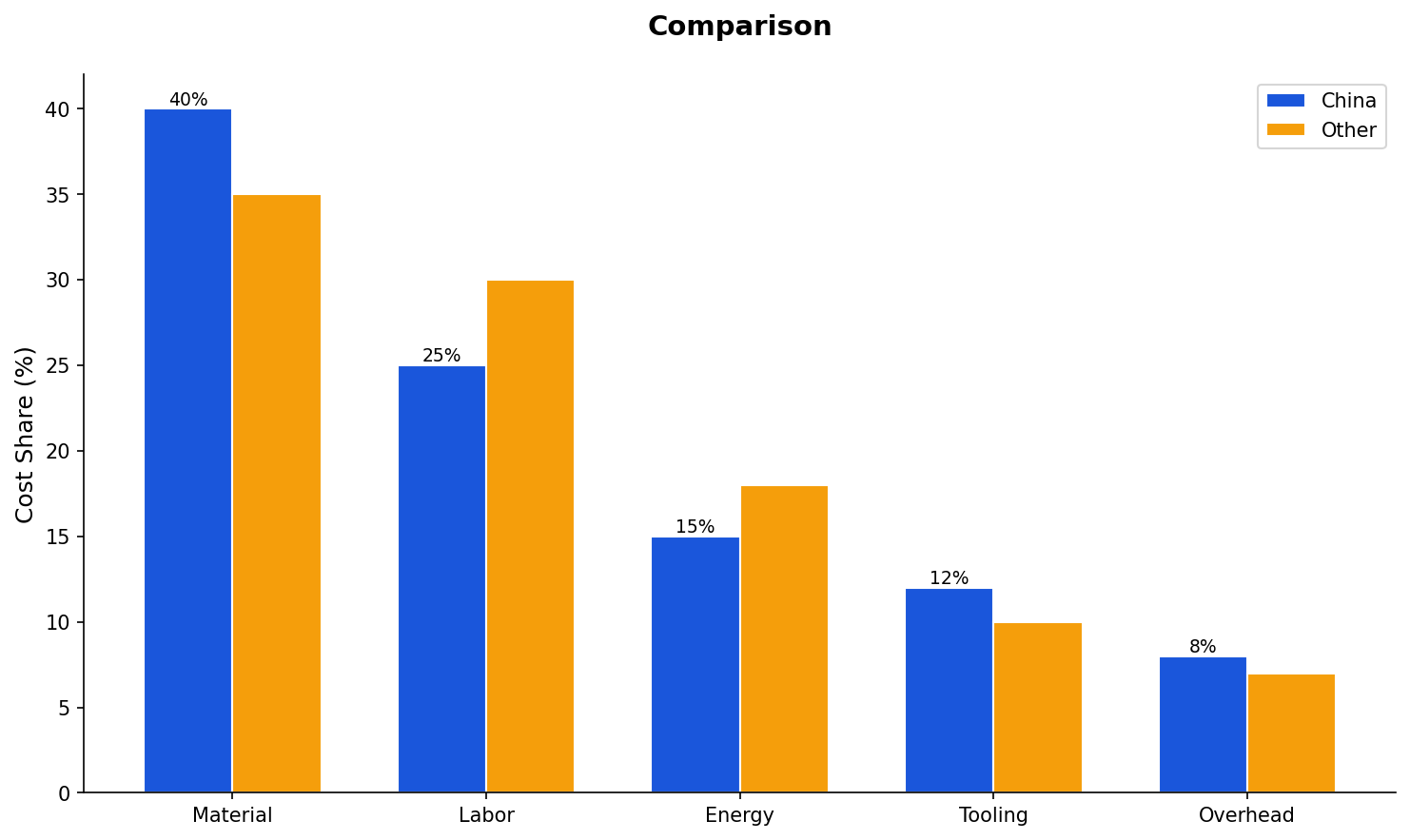

What Does Small Batch Casting Actually Cost in China?
Let's get this out of the way: you won't find $0.50/kg for small runs. Chinese foundries operate on scale, and low volume means higher per‑piece cost. But the markup is still far cheaper than domestic or European options. Here's what you can expect for typical alloys (prices in USD, 2026 data):
| Material | Typical MOQ (pieces) | Cost per kg (small batch) | Lead time (weeks) |
|---|---|---|---|
| Gray Iron (G2500) | 100–300 | $2.10 – $3.50 | 4–6 |
| Ductile Iron (65-45-12) | 150–400 | $2.80 – $4.20 | 5–7 |
| Aluminum A356 (T6) | 50–200 | $3.80 – $5.50 | 3–5 |
| Stainless Steel 304 (CF8) | 100–250 | $5.50 – $8.00 | 6–8 |
| Brass C36000 | 80–180 | $6.00 – $9.00 | 5–7 |
Source: Interstate Castings supplier database & 2026 market calibration. Prices are FOB (Ex Works) and vary with complexity, tolerance, and finishing.
Notice the spread. A foundry quoting you the low end for a complex aluminum part with tight tolerances is cutting corners. A price 30% above the midpoint usually means they don't want the job. The sweet spot is the middle third.

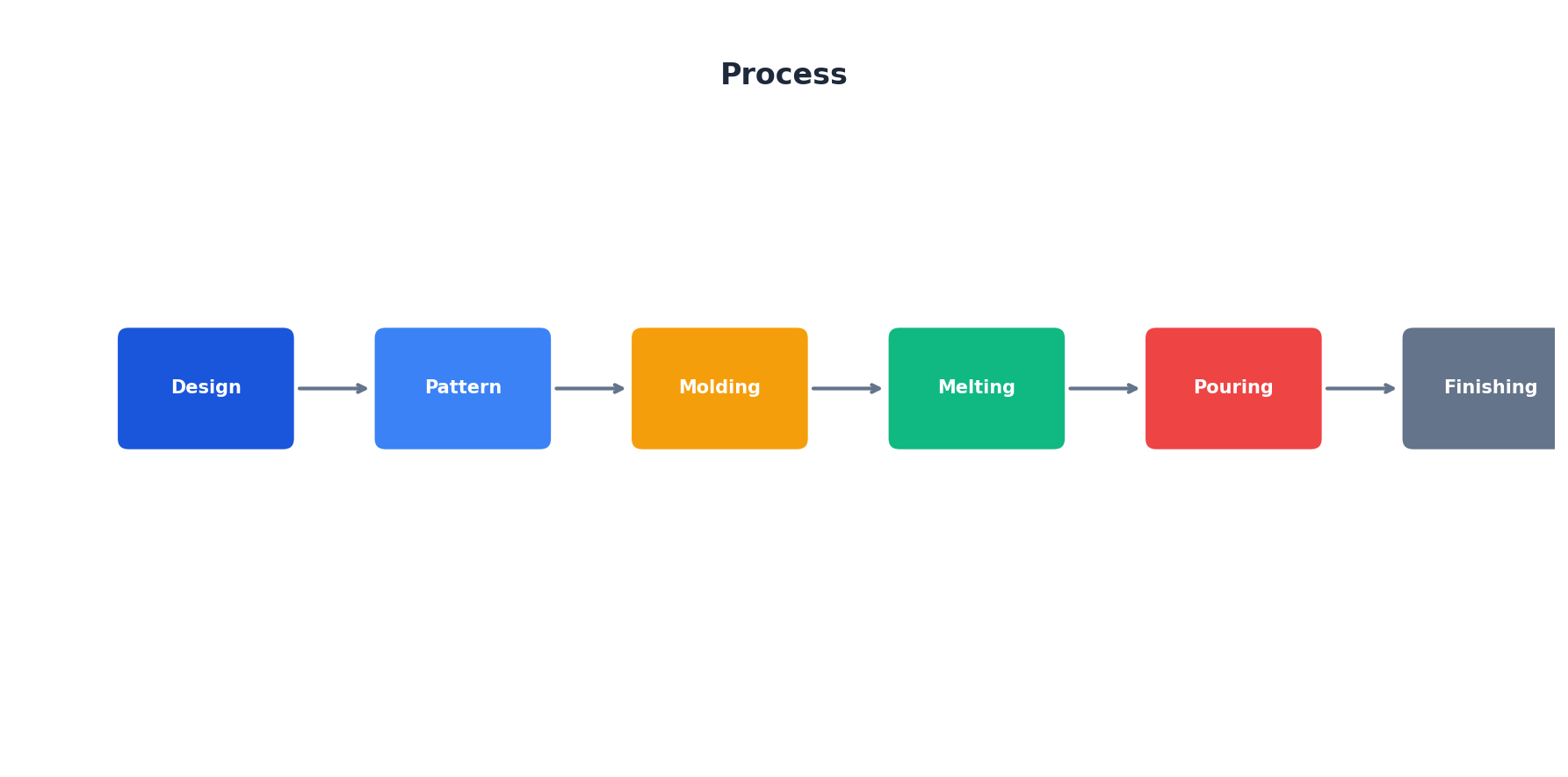

Real MOQ Benchmarks: What You Can Actually Get
Yes, you can get 50 pieces of a simple aluminum sand casting. But will you pay a premium? Absolutely. Here's the breakdown by process for low volume:
- Green Sand Casting: MOQ 50–300 pieces (pattern cost ~$500–$2,000). Best for large, simple parts in iron or aluminum.
- Investment Casting (Lost Wax): MOQ 100–1,000 pieces (tooling ~$1,000–$5,000). Ideal for complex geometries and fine detail.
- Die Casting: MOQ 500–3,000 pieces (die cost $5,000–$30,000). Not suitable for true small batch—only if you need high repeatability.
- Lost Foam: MOQ 200–800 pieces (pattern cost $800–$3,000). Good for medium complexity without draft angles.
“I needed 250 cast iron pump housings. Three Chinese foundries said no before I found one willing to do the run at $4.20/kg. The trick? I shared the drawing, paid for sample tooling, and agreed to a 50% deposit. That was the only way.” — James Parker, Procurement Manager at AquaFlow Systems.

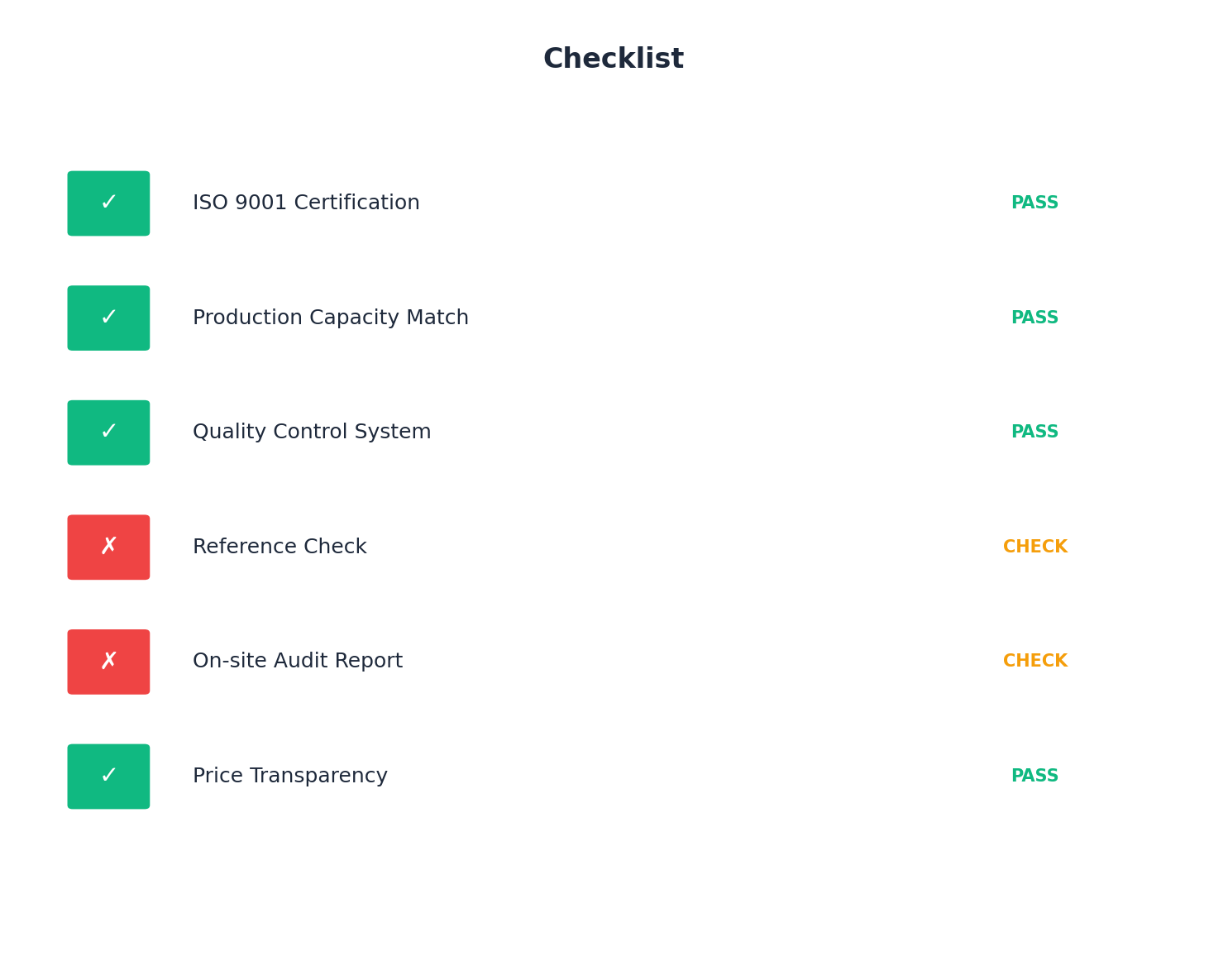

How to Vet a Chinese Foundry for Small Batch (Without Getting Burned)
Not every foundry is set up for small orders. Many prefer large production runs because setup cost per piece drops. You need to find ones that specialize in low‑volume or job shop work. Here's a 5‑step qualification framework:
- Check their minimum order by process. Many foundries list MOQs online. If they say “500 for sand casting,” move on. You want one that advertises 100–200.
- Ask about pattern/tooling ownership. For small batch, you likely own the tool. Foundries that offer “free tooling” usually bake it into the piece price—and that price only works for volume.
- Request a “small batch premium” quote. A transparent foundry will give you a separate price for 100 vs 500 pieces. If they can't, they're not used to small orders.
- Verify material certificates. For small runs, some foundries skip spectro analysis. You need a Mill Test Report (MTR) for every heat.
- Use a sourcing agent for verification. If you can't visit, hire an independent inspector (like the one at Interstate Castings) to audit their small‑batch capability.
6 Mistakes That Kill Small Batch Sourcing (And How to Avoid Them)
You've probably heard horror stories. Here's how not to become one:
- 1. Assuming big foundries want your business. They don't. Target smaller job shops. They're more flexible and will treat your 200‑piece run like a priority.
- 2. Ignoring finishing costs. The raw casting might be $3/kg, but if you need CNC machining, heat treat, or surface coating, that can double the price. Get a full “finished part” quote, not just the as‑cast price.
- 3. Not clarifying inspection standards. “Standard commercial” means different things in different foundries. Specify ASTM A48 for gray iron or ASTM A536 for ductile. Write it into the PO.
- 4. Falling for the “free sample” trap. Free samples often come from the best production run, not the actual process. Pay for representative samples—or better, a first article.
- 5. Skipping shipping logistics. Small batches often ship LCL (less than container load). Freight cost per kg can be 3x higher than FCL. Factor that into your landed cost.
- 6. Not having a contract with dispute resolution. If the parts are 0.5 mm out of tolerance, who pays? Use a standard purchase agreement with Chinese legal language (or use a trusted agent who mediates).
Frequently Asked Questions
What is the absolute minimum quantity I can order for small batch casting in China?
For simple sand castings (aluminum or iron), you can get as low as 50 pieces. Expect unit costs 30–60% higher than at 500 pieces. Investment casting usually requires at least 100 pieces due to wax pattern tooling costs.
How do I find Chinese foundries that accept small batches?
Use Alibaba filters for "custom casting" and set MOQ to 100. Search for "low volume foundry China" or "prototype casting. Better yet, work with a sourcing agent who already vets small-batch shops. We (Interstate Castings) maintain a list of 30+ vetted job shops.
Is small batch casting in China cheaper than domestic options?
Yes, typically 40–60% cheaper than US or European foundries for the same material and complexity. But after shipping, duties, and potential quality rework, the net saving may be 20–35%. Still worthwhile for most engineered products.
What's the typical lead time for a small batch casting order?
From order to delivery (including tooling): 4–8 weeks for aluminum sand casting, 6–10 weeks for iron, 8–12 weeks for stainless investment casting. Express options exist but add 20–30% cost.
Do I need to provide my own pattern or mold?
For low volume, you'll likely pay for the pattern separately (usually $500–$3,000). The foundry will store it. If you own it, you can easily move to another foundry. If the foundry owns it, you're locked in.
Next Steps: Turn Data Into Decisions
Small batch casting in China is a viable strategy—when you treat it like a systematic process, not a lucky draw. Start with the cost benchmarks above. Identify the process you need. Use the vetting checklist. And never be afraid to ask for a small batch premium breakdown.
One more thing: If you want a side‑by‑side comparison of three vetted Chinese foundries ready to handle your small run, we do that for free. No obligation. Just your part drawing and volume. We'll come back with real quotes, including tooling and shipping estimates.
Ready to test the market? Get your small batch casting RFQ pack at verifycasting.com/rfq. Include your step file or PDF, and we'll match you with 3 qualified job shops in 48 hours.
