Two years ago, a German colleague of mine—let's call him Klaus—signed off on a batch of QT400-18 ductile iron housings from a foundry in Shanxi. The supplier's test report looked clean: tensile strength, yield point, elongation… all within spec. Klaus was satisfied. Parts shipped. Arrived at the assembly plant in Stuttgart.

Three months later, six housings cracked during pressure testing. The lab ran a chemical analysis. The material wasn't QT400-18. It was a cheap QT350-10 substitute with carbon content pushed to the upper limit. The supplier had sent a fake mill certificate—printed on letterhead that looked real enough to fool a first-time buyer.

Klaus lost €47,000 on that order. Plus six weeks of production downtime. Plus a conversation with his VP that he still doesn't like to talk about.

You're probably thinking: "That wouldn't happen to me. I check the certificates."

Maybe. But let me show you exactly how material grade verification works in China—and where most buyers slip up.

Why Material Grades Are the Single Point of Failure

In casting procurement, the material grade is everything. It determines mechanical properties, heat treatment requirements, weldability, and final performance. You don't buy "cast iron"—you buy HT250 or QT500-7 or ZG270-500. Each grade has a specific chemistry and property range.

China uses the GB (Guobiao) standard system. It's a national standard, mandatory for domestic production and export. The problem is that many Western buyers don't understand how GB maps to ASTM or EN. And some suppliers exploit that gap.

According to a 2025 survey by the China Foundry Association, roughly 12-15% of mill certificates from small and medium-sized foundries contain intentional grade misrepresentations. That's not a typo—it's a pattern. And it's why you need a verification system, not just a trust system.

GB Casting Material Standards: The Landscape

China's GB standards for castings are organized by material type. Here are the four main families you'll encounter:

Gray Iron (GB/T 9439)

Classified by tensile strength. Common grades: HT150, HT200, HT250, HT300. The number indicates minimum tensile strength in MPa. HT250 means minimum 250 MPa. Simple enough. But the chemical composition limits differ from ASTM A48 class 40B—similar mechanical targets, different chemistry windows.

Ductile Iron (GB/T 1348)

This is where Klaus got burned. Ductile iron grades in China use the QT prefix, followed by tensile strength and elongation. QT400-18 means 400 MPa tensile strength, 18% elongation. The equivalent ASTM grade is 60-40-18. But here's the trap: the Chinese grade QT350-10 (350 MPa, 10% elongation) looks similar on paper but has significantly lower impact resistance. A supplier can push carbon to the upper limit and get close to 400 MPa—but the elongation drops. You'd catch it if you test. Many buyers don't.

Steel Castings (GB/T 11352)

Grades like ZG230-450 (230 MPa yield, 450 MPa tensile) map roughly to ASTM A27 Grade 65-35. The ZG stands for "cast steel" (zhu gǎng). Again, chemical composition limits differ slightly. If your part requires welding, the carbon equivalent must be checked carefully—Chinese specs sometimes allow higher carbon than ASTM.

Malleable Iron (GB/T 9440)

Less common in modern applications but still used for pipe fittings and hardware. Grades like KTH350-10 (blackheart malleable) have no direct ASTM equivalent, though they approximate ASTM A47. This is a zone where cross-reference errors happen frequently.

Understanding the GB system is step one. Step two is knowing how it maps to the standards you're used to.

GB ↔ ASTM ↔ EN: The Cross-Reference You Need

Below is the most up-to-date cross-reference table for common casting material grades. Use it, but don't rely on it alone—always verify with actual test data.

Critical note: "Nearest" doesn't mean "identical." Chemical composition limits, testing methods, and sampling frequencies vary. Always define acceptance criteria in your contract using the specific standard you require—not a "GB equivalent to ASTM" handshake.

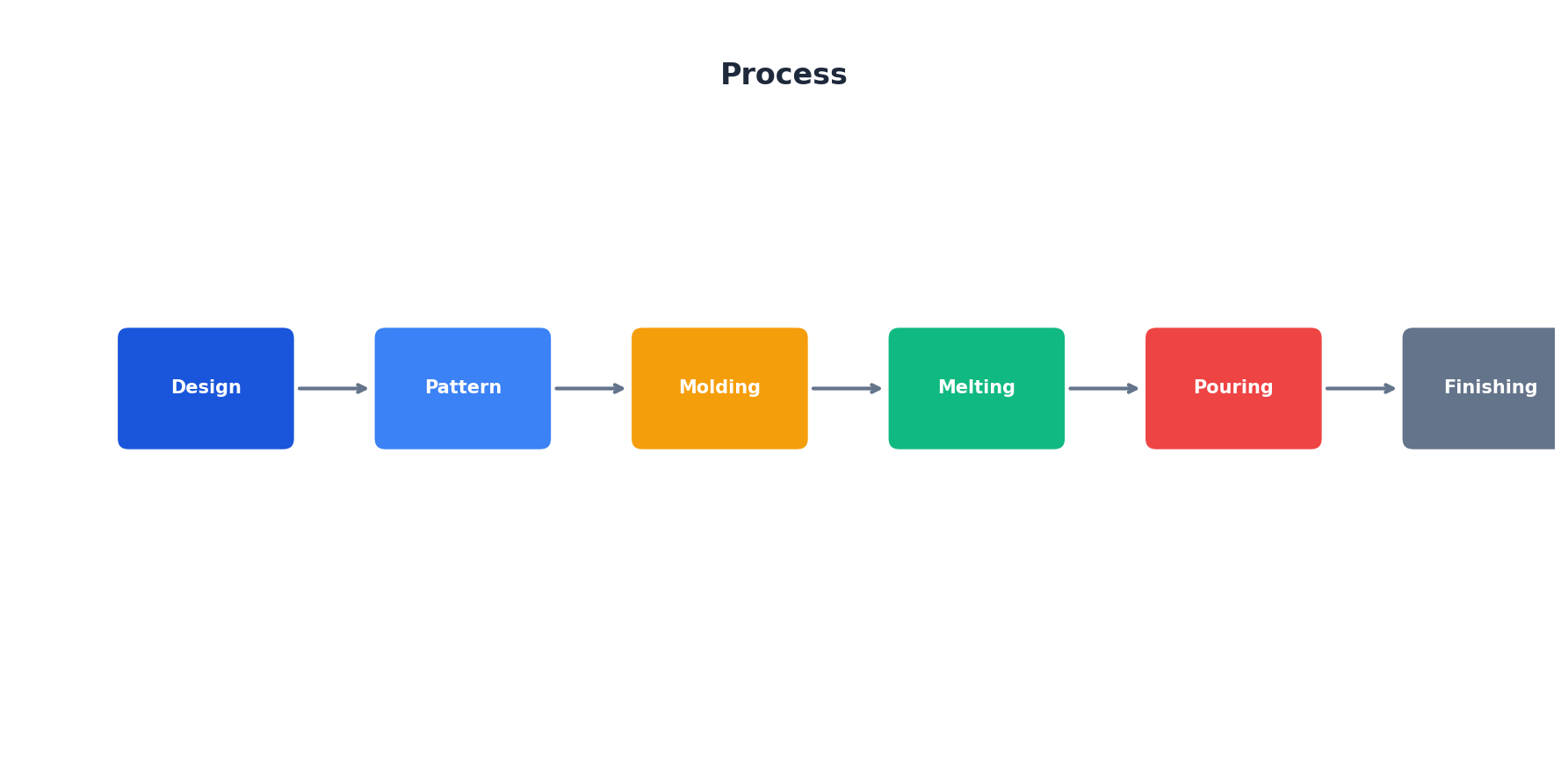

How to Verify Material Grades: A 4-Step System

You can't stop fake certificates entirely, but you can make it economically pointless for a supplier to try. Here's the system I teach every buyer I work with:

Step 1: Require Heat-Specific Mill Certificates

Not a "typical" certificate. Not a "representative" one. A certificate tied to a specific heat number, signed and stamped by the foundry's quality manager. The certificate must show chemical analysis (C, Si, Mn, P, S for iron; plus Cr, Ni, Mo, Cu for alloyed grades) and mechanical test results (tensile strength, yield strength, elongation, hardness).

Step 2: Request a Retained Sample

Every heat produces test coupons—Y-block samples cast from the same melt. Ask your supplier to hold a retained sample from the same heat for 60 days after shipment. You can then request a third-party test on that sample if needed. This is standard practice in ISO-certified foundries. If your supplier hesitates, that's a red flag.

Step 3: Independent Third-Party Testing

Use a lab you choose, not one the supplier recommends. SGS, Bureau Veritas, and TÜV all operate testing facilities in China. Cost is typically $150-400 per test, depending on the scope (chemical + tensile + hardness). On a $50,000 order, that's less than 1% for verification that can save your entire investment.

Step 4: Cross-Reference Against the Standard

Take the lab results and compare them directly to the GB or ASTM standard requirements. Don't just look at the final "pass/fail"—look at the margin. If carbon is at the upper limit and elongation is at the lower limit, the material is borderline. That's a warning sign for consistency. You want a supplier whose material comfortably sits in the middle of the spec range.

Implement this system once. Document it in your purchasing agreement. After the first order, your supplier knows you verify. The fake certificates stop coming.

5 Traps That Trip Up Experienced Buyers

Even buyers who've been sourcing from China for years fall into these. I've seen each one personally.

Trap 1: "It's equivalent to ASTM" — without proof.
A supplier says their HT250 is "equivalent to ASTM A48 Class 40B." Ask them to show the cross-reference in writing, with the specific chemistry limits. If they can't, or if the numbers don't align, you have a problem.

Trap 2: Relying on a single test coupon.
One coupon doesn't represent an entire production run. For critical parts, require testing from three different points in the pour sequence: first, middle, and last. This catches segregation issues and inconsistent treatment.

Trap 3: Accepting "typical" chemistry ranges.
"Typical" means nothing in a contract. Require "guaranteed" ranges with a certificate of analysis for each heat. The difference is the difference between a handshake and a lawsuit.

Trap 4: Not checking the carbon equivalent in steel castings.
Chinese steel casting grades sometimes allow higher carbon than ASTM equivalents. For parts that require welding, carbon equivalent (CE) must be specified and verified. A ZG230-450 with CE above 0.45% can crack in the heat-affected zone.

Trap 5: Assuming "ISO certified" means "they check materials."
ISO 9001 certifies process quality, not product quality. A foundry can have perfect documentation and still produce off-grade material. The certification tells you they have a system. It doesn't tell you the system catches everything.

Avoid these traps, and you're already ahead of 80% of buyers I meet.

Contract Language That Protects You

You can't inspect quality into a product—but you can contract for it. Here are three clauses I recommend adding to every casting purchase order with a Chinese supplier:

Clause 1: Material Grade Guarantee
"The supplier guarantees that all castings supplied under this order conform to the chemical composition and mechanical property requirements of [specific GB/ASTM/EN standard and grade]. A certified mill certificate from an ISO 17025-accredited laboratory must accompany each shipment."

Clause 2: Third-Party Testing Rights
"The buyer reserves the right to engage an independent third-party laboratory to test material samples from any shipment at the supplier's cost if the initial test results are in question. Samples shall be taken from retained test coupons held for a minimum of 60 days after shipment."

Clause 3: Remedy for Non-Conformance
"If material is found not to conform to the specified grade, the supplier shall, at the buyer's option, either replace the non-conforming castings at no cost to the buyer, or issue a full refund including all shipping and testing costs. The supplier bears all liability for consequential damages arising from material non-conformance."

Get these in writing before you place the order. A supplier who pushes back on any of these is telling you something important.

Frequently Asked Questions

These are the questions I get most often from buyers who are setting up their verification process.

What is the difference between GB and ASTM casting material grades?

GB is China's national standard system; ASTM is the American standard. They use different naming conventions and testing methods. Many grades have near-equivalent counterparts, but chemical composition limits and testing frequencies differ. Always specify which standard you require in your contract.

Can I trust a Chinese supplier's mill certificate?

Not blindly. Industry estimates suggest 12-15% of certificates from small to medium foundries contain intentional misrepresentations. Always verify with an independent third-party lab test, especially for critical applications. Request sample coupons from the same heat and have them tested by a lab you choose.

How do I verify that a casting material meets the specified grade?

Use a four-step process: 1) Require a certified mill certificate with heat number, 2) Request a retained sample from the same heat, 3) Send the sample to an independent lab for chemical analysis and mechanical testing, 4) Cross-reference the results with the standard requirements. This is detailed in Section 5 above.

What is the most common material grade substitution in Chinese foundries?

The most common is using a lower-cost grade with similar but inferior properties, like replacing QT400-18 with QT350-10. The carbon content is pushed to the upper limit to fake tensile strength, but elongation and impact resistance suffer. That's exactly what happened to Klaus.

Does GB 1348 cover the same as ASTM A536?

Both cover ductile iron castings, but they are not identical. GB 1348 uses a different classification system based on tensile strength and elongation. Mechanical property requirements are similar, but testing methods and sampling frequencies differ. Cross-reference tables exist—like the one in this article—but always verify with actual test data.

Don't Be the Next Klaus

Klaus got his money back eventually—after six months of legal back-and-forth and a lot of uncomfortable emails. He also changed his entire verification process. Today, every casting order he places includes third-party testing and a retained sample clause.

He told me recently: "The €47,000 was painful. But the six weeks of downtime almost cost me a major client. I should have had a system from day one."

You don't have to learn that lesson the hard way. The system exists. Use it.

— Hans Weber, Sourcing Engineer

Hans has 14 years of experience in casting procurement across China, India, and Vietnam. He's helped 40+ European and American buyers set up material verification systems that protect their supply chains.
